Feature and benefits:
Electro galvanizing, rust free;
Easy to install, good performance;
Large contact area with high pullout strength;
All can be installed with Setting Tool system (stop drill bit and machine setting tool) for improved

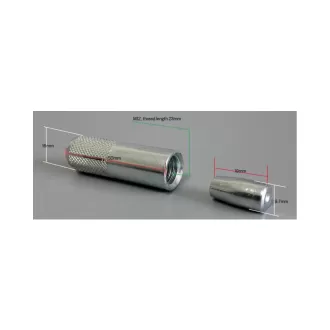

Product Description
Nominal Diameter | Length I (mm) | Insert Thread M | Drill bit dia. d0 (mm) | Hole depth h 1 (mm) | Screwing in depth Sd,min (mm) | Screwing in depth Sd, max (mm) | Pcs/ctn | Kg/ ctn | |
M6 | 1/4" | 25 | 6 | 8 | 27 | 6 | 14 | 4,000 | 22.8 |
M8 | 30 | 8 | 10 | 33 | 8 | 14 | 2,000 | 20.0 | |
M10 | 3/8" | 40 | 10 | 12 | 43 | 10 | 17 | 1,000 | 20.0 |
M12 | 1/2" | 50 | 12 | 16 | 54 | 12 | 22 | 500 | 25.0 |
M16 | 5/8" | 65 | 16 | 20 | 70 | 16 | 28 | 250 | 23.5 |
M20 | 3/4" | 80 | 20 | 25 | 85 | 20 | 34 | 100 | 20.0 |
